Gravel Grid Nidagravel 129 XL

*** BLACK & WHITE COLOURS NOW IN STOCK - GREY COLOUR SPECIAL ORDER ONLY ***

The Versatile, Folding Gravel Grid for a Great Gravel Driveway!

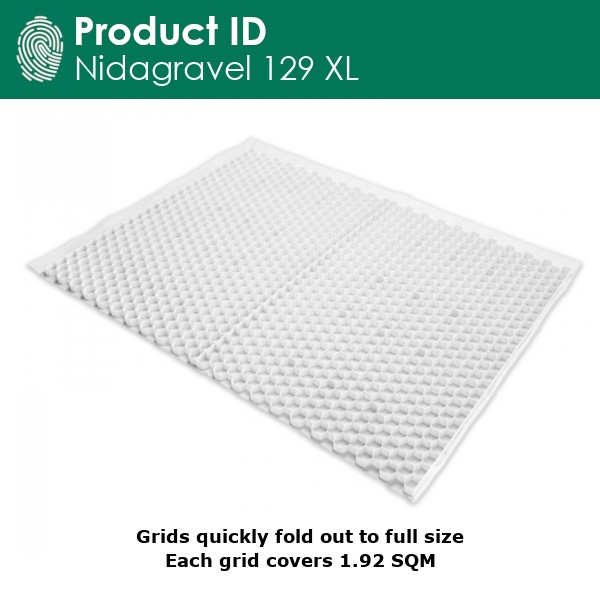

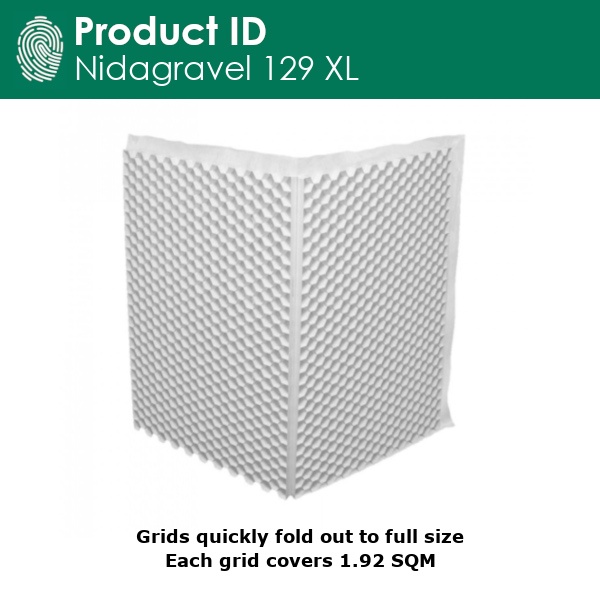

Nidagravel 129 XL gravel grids (AKA The Folding One) is a strong gravel grid suitable for driveways. The Nidagravel 129 XL and Nidagravel 139 XL gravel grids are the only folding grids in our range. Each grids is folded in half for shipping and is then simply unfolded when laying the grids on to the prepared sub-base. We have introduced these grid options to give customers a choice of colour (they are available in black and white from stock and in grey by special order) and to offer customers a saving with shipping costs. Because these are folding grids they fit on a standard euro pallet which costs less to ship than our jumbo pallets so we can pass that saving on to our customers. For large gravel driveway projects, our original large format, white Nidagravel 130 and Nidagravel 140 grids are still usually the best option. Simply choose the gravel grid that will work best for your project - if you need any help deciding on which is the best gravel grid to use please call or email the sales team.

Gravel Stabilisation Grid for Paths, Patios & Driveways

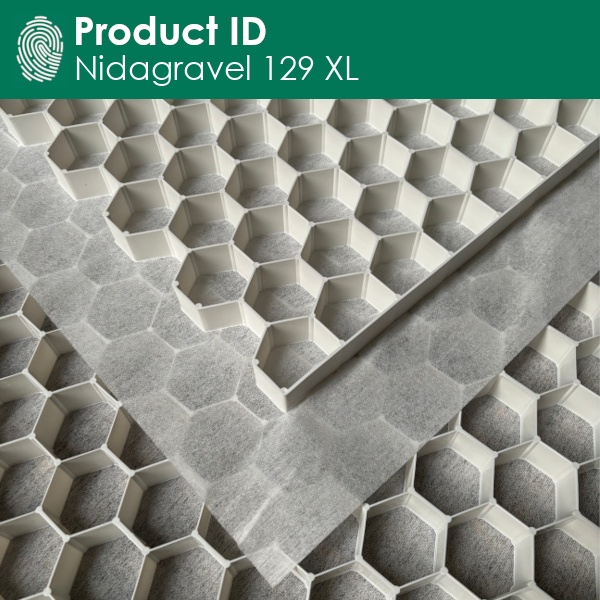

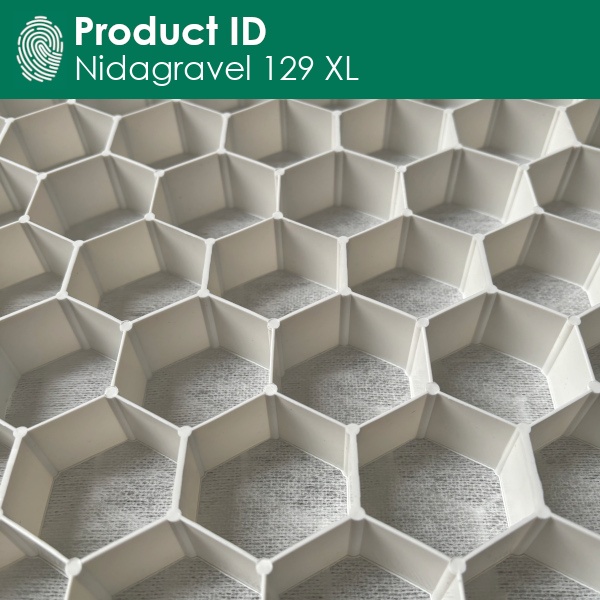

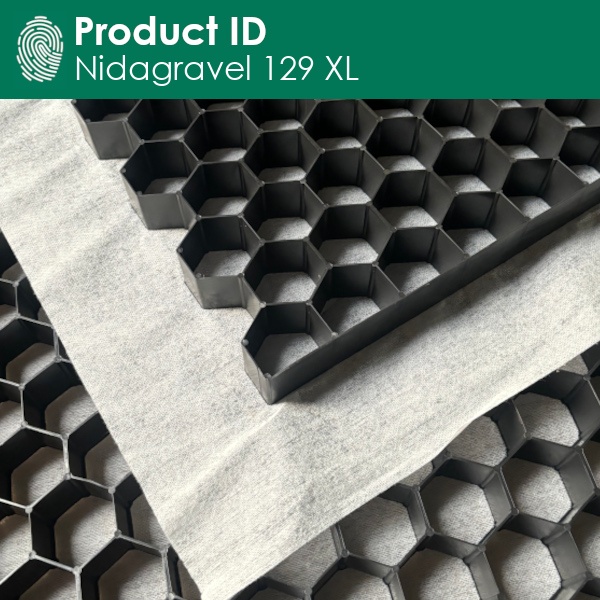

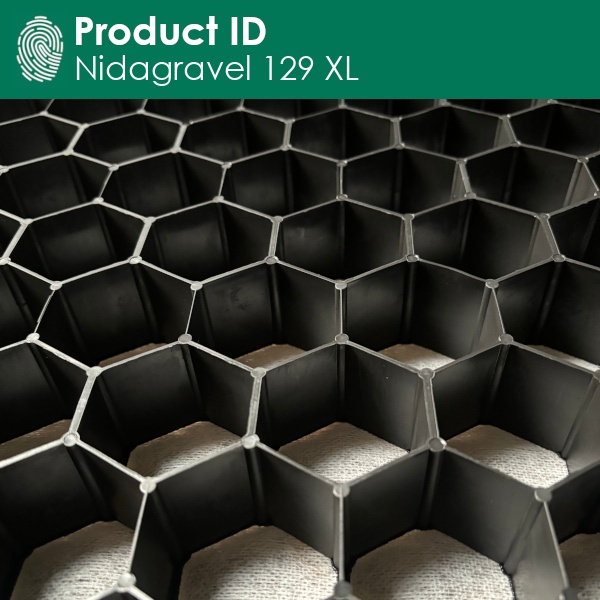

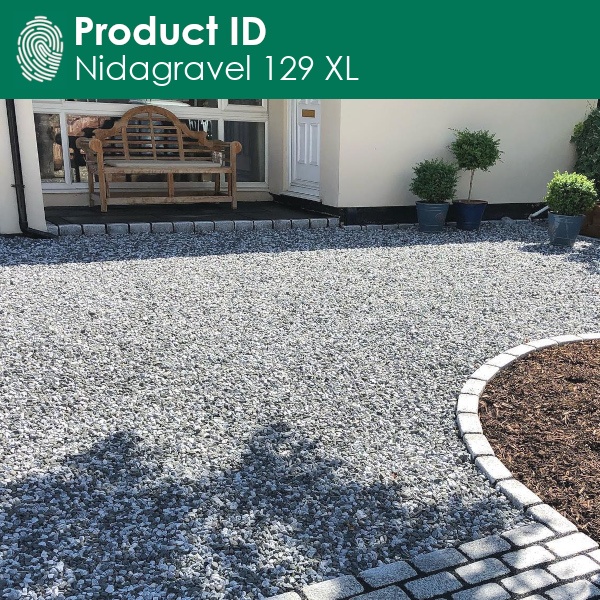

Nidagravel honeycomb gravel grids were specifically designed for the creation of stable, long-lasting, 100% rainwater permeable path, patio and driveway surfaces using gravel. Our honeycomb gravel stabilisation grids are made from polypropylene with a hexagonal cell structure used for gravel stabilisation. The honeycomb grids, with a cell diameter of 49 mm, have a porous geotextile membrane bonded to the underside of the grid using a hot-glue process. There are two overlaps of geotextile membrane on two sides of each grid, which provide continuity of the membrane when butting grids together during installation. No fiddly pins or clips are required as the weight of the gravel keeps the grids firmly in place. Nidagravel 129 XL grids are supplied in a folding format which is ideal for smaller gravel projects, DIYers and self-installers, as the grids are compact and easier to handle, install and transport. Our gravel stabilisation grids are UV stable and resistant to extremes or high and low temperatures. Use Nidagravel 129 XL to create a stable gravel garden path or driveway and you will be delighted with the results! Available in 3 colours; white, grey and black.

Nidagravel UK - Making gravel surfaces perform better...

FREQUENTLY ASKED QUESTIONS:
Click here to see answers to questions about our Nidagravel gravel grids

CASE STUDIES
View some great projects using our gravel grids

HOW WE DELIVER:
Click here to see how your Nidagravel gravel grids will be delivered

The original and best gravel stabilisation system

Invented, designed, tested and manufactured by Nidaplast

Creates a high performance and durable gravel surface

Designed to be an unseen or invisible gravel stabiliser

Made from UV stable polypropylene

The eco-friendly manufacturing process uses water recycling

Each sheet contains 10% recycled materials

100% Free draining for a SuDS compliant permeable surface

Smaller sheet size ideal for DIYers, paths and small projects

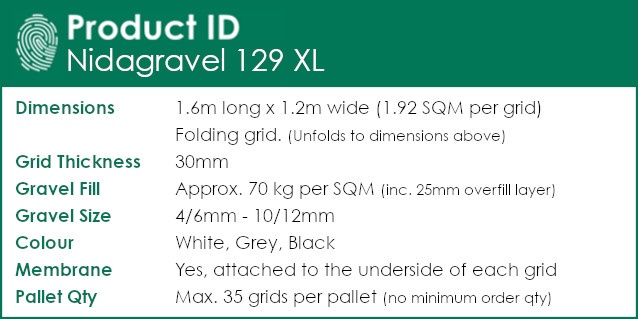

Product ID: Nidagravel 129 XL Gravel Grid

Sheet dimensions: 1.6m x 1.2m x 30 mm (L x W x H)

Sheet coverage: 1.92 SQM per grid (Folding grid)

Sheet thickness: 30 mm

Sheet weight empty: 1.62 kg per SQM

Sheet weight empty: 3.11 kg per grid

Sheet weight filled: 70 kg per SQM (approx.)

Sheet weight filled: 135 kg per grid (approx.)

Sheet colour: White, Grey, Black

Diameter of honeycombs: 49 mm

Compressive strength (filled): 400 tonnes per SQM (approx.)

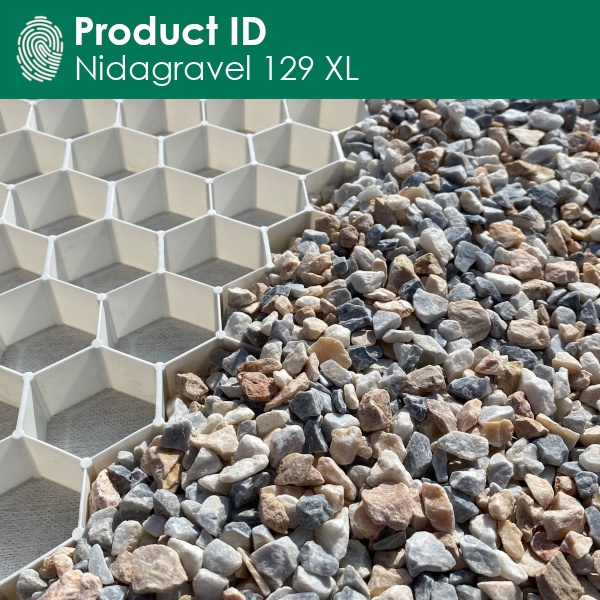

Gravel fill: Any decorative aggregate

Gravel fill: Angular (recommended)

Gravel fill size: Single Size Gravel 4/6mm (minimum)

Gravel fill size: Single Size Gravel 10/12mm (maximum)

Gravel fill size: Graded Gravel 4 - 14mm (range)
