Gravel Grid - Nidagravel 129

Gravel Stabilisation Grids for Pathways
Nidagravel® 129 is a small format sheet of plastic honeycomb cells designed for stabilising gravel surfaces including patios, garden paths, seating areas and small driveways.

£9.99 per m2

Cost per sheet: £9.59 (sold in whole sheets of 0.96m2 per sheet)
If you know your exact quantity of
sheets enter it here:
sheets
Calculator: use this calculator if you have width and length measurements
Width of area to be covered:M
Length of area to be covered:M
or if you know the exact area enter here:M2
You will require:sheets
Exact coverage:M2

Nidagravel® is the No.1 Brand & Best Selling Gravel Stabilisation Grid

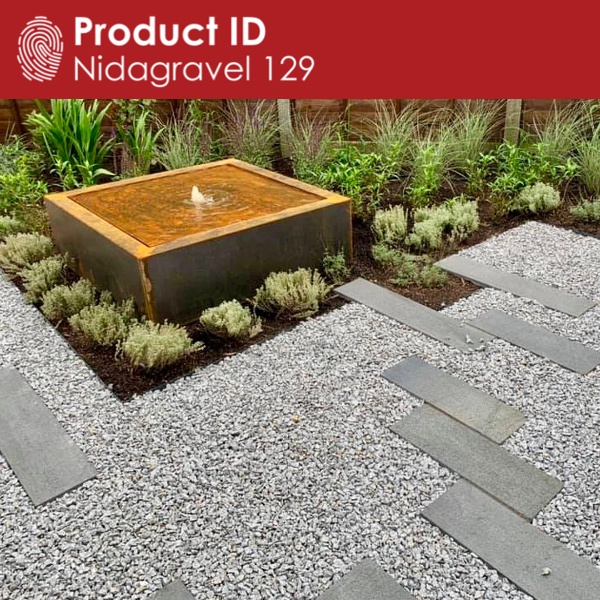

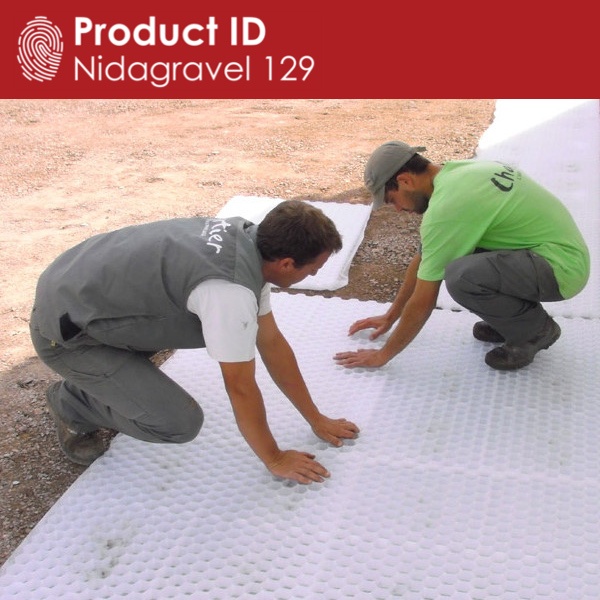

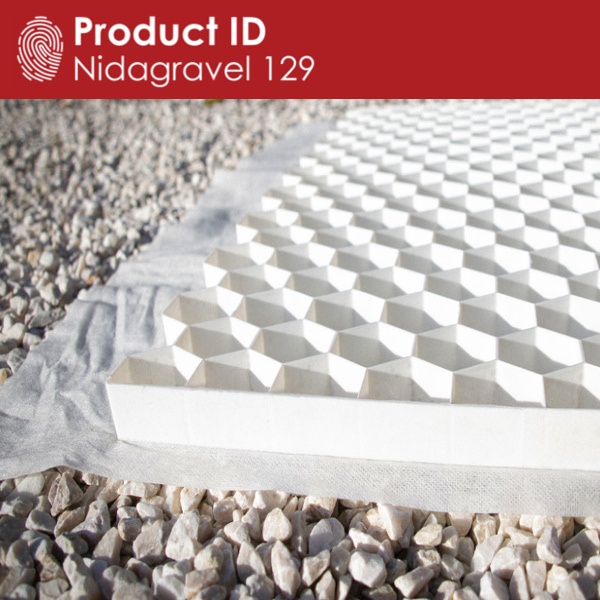

NIDAGRAVEL® 129 gravel grids have been developed for the creation of stable, long-lasting, water-permeable path and drive surfaces using gravel. It is made from polypropylene sheets with a honeycomb structure used for gravel stabilisation. The honeycombs, with a diameter of 49 mm, have a porous geotextile bonded to the underside of the sheet using a hot-glue process. There are 2 flaps of geotextile or membrane on two sides of each sheet, which provide continuity of the membrane when butting sheets together during installation. NIDAGRAVEL® 129 is supplied in a smaller sheet size ideal for smaller projects and DIYers or self-installers, as the sheets are compact and easier to handle, install and transport. The gravel stabilisation sheets are UV stable and resistant to extremes or high and low temperatures. Use NIDAGRAVEL® 129 to create stable gravel garden paths, small residential driveways and off-road parking space.

FEATURES & BENEFITS OF NIDAGRAVEL:
  • NIDAGRAVEL® 129 GRAVEL GRID
  • The original and best gravel stabilisation system
  • Invented, designed, tested and manufactured by Nidaplast
  • Creates a high performance and durable gravel surface
  • Designed to be an unseen or invisible gravel stabiliser
  • Made from UV stable polypropolene
  • Eco friendly manufacturing process uses water recycling
  • Each sheet contains 10% recycled materials
  • 100% Free draining for a SuDS compliant permeable surface
  • Smaller sheet size ideal for DIYers, paths and small projects

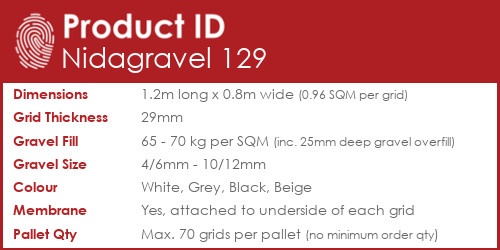

  • TECHNICAL SPECIFICATIONS:
  • NIDAGRAVEL® 129 GRAVEL GRID

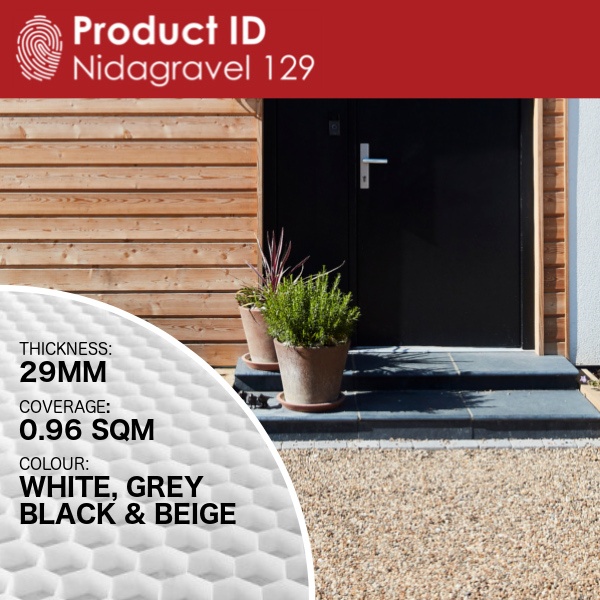

  • Sheet dimensions: 1.2m x 0.8m x 29 mm (L x W x H)
  • Sheet coverage: 0.96 sqm per sheet
  • Sheet thickness: 29mm
  • Sheet weight empty: 1.29 kg per sqm
  • Sheet weight empty: 1.29 kg per sheet
  • Sheet weight filled: 58 kg per sqm
  • Sheet weight filled: 58 kg per sheet
  • Sheet colour: Translucent white
  • Diameter of honeycombs: 49 mm
  • Compression resistance (filled): up to 300 tonnes per sqm
  • Gravel fill: Decorative aggregate
  • Gravel fill: 10 - 12mm (maximum size)
  • Product NIDAGRAVEL® 129 GRAVEL GRID
    Function Gravel Stabilisation Only
    Raw Material Copolymer polypropolene
    10% recycled PP
    90% high quality PP
    Membrane 45g (thermally glued)
    Mass Approx 1.29 kg per sqm
    Approx 1.29 kg per sheet
    Strength Under compression / Load bearing
    In accordance with ISO 844
    Empty sheet Strength approx. 20 tonnes per sqm
    Filled sheet Strength approx. 300 tonnes per sqm (dependant on aggregate)
    Durability Excellent resistance to chemical substances
    Highly resistant to aggressive products
    Highly resistant to micro organisms and rodents
    Excellent UV Resistance
