Artificial Grass Drainage System Nidagreen 228L

Artificial Grass Drainage Grid - Lightweight & Permeable
Nidagreen is a micro-honeycomb drainage grid system for improving rainwater drainage of standard artificial grass lawns and enabling better installation of artificial grass on hard surfaces and roof gardens.

£15.50 per m2 + VAT

Cost per grid: £37.20 + VAT (grid size is 2.4m2)
Calculator: use this calculator if you have width and length measurements
Width of area to be covered:M
Length of area to be covered:M
OR enter the exact area here:M2
You will require:grids
Exact coverage:M2

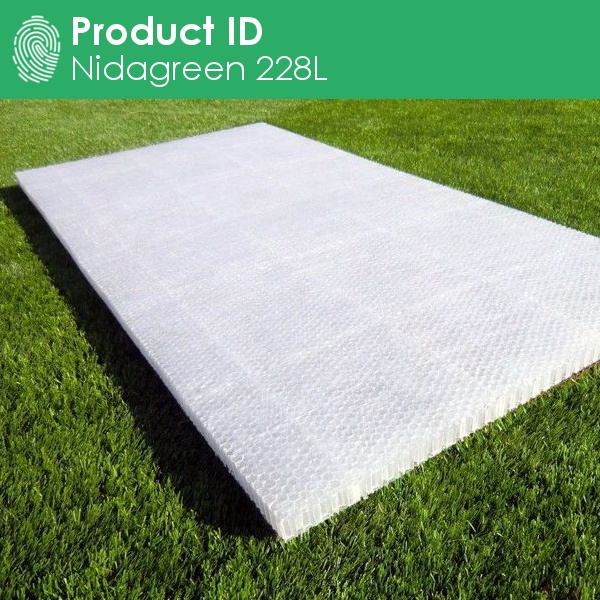

NIDAGREEN 228L lightweight, micro-honeycomb sheets are designed to be used as an underlay for artificial grass installations. The sheets can be used as a replacement for sub-base material in traditional artificial grass installations and offer a number of benefits to both artificial grass installers and installations of artificial grass. For artificial grass installers - Nidagreen is lightweight and easy to handle, which speeds up installation times. Nidagreen« is also easy to lay, requiring no specialist tools and can be cut to fit any angle or curve. Nidagreen can be used with any edging system and allows artificial grass to be bonded directly to the sheets. Nidagreen can also be used in conjunction with shock pads and other artificial grass accessories.

For all artificial grass installations, Nidagreen offers a number of benefits which improve the performance of the artificial grass lawn. Nidagreen provides a barrier between the artificial grass itself and the ground, which keeps the artificial grass much drier. It is completely free draining and in periods of heavy rainfall, Nidagreen will hold a certain volume of water, which it will release slowly, thus improving drainage. Nidagreen also offers a certain amount of shock absorption, which improves how the artificial grass surface feels when walking across the surface and using the lawn. It can also be used with shock pads, where these are required for sports or play areas. View our installation videos to find out more and see how it's done.

Whatever artificial grass product you install, including Namgrass, iGrass, Evergreen, LazyLawn, Trulawn, Perfectly Green, Easigrass and all other major brands. Combine your artificial grass with Nidagreen for the ultimate artificial grass lawn.

  • NIDAGREEN 228L Artificial Grass Underlay
  • Designed and manufactured by Nidaplast

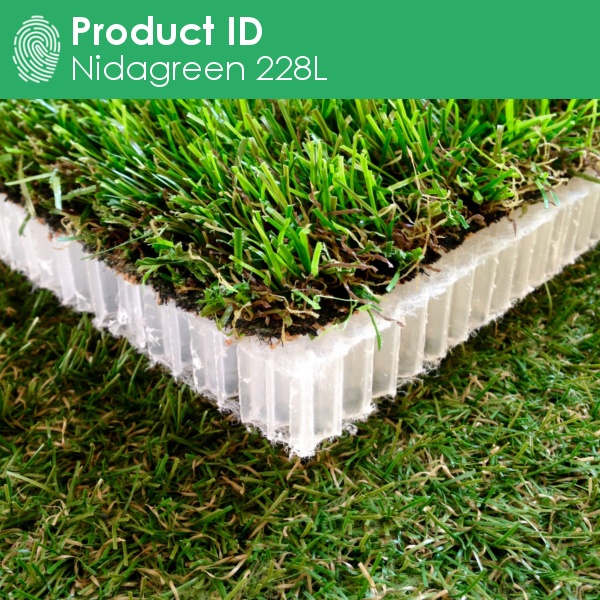

  • Honeycomb underlay grid for artificial grass installations
  • Ensures maximum drainage to keep artificial grass dry

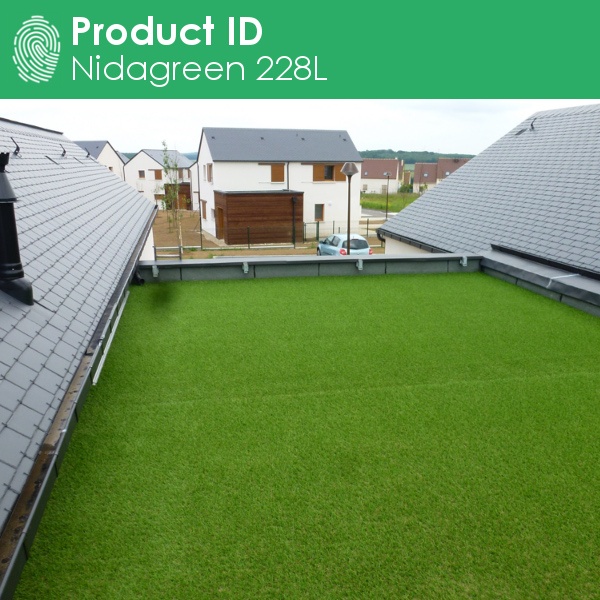

  • Use as a lightweight build-up layer for roof gardens

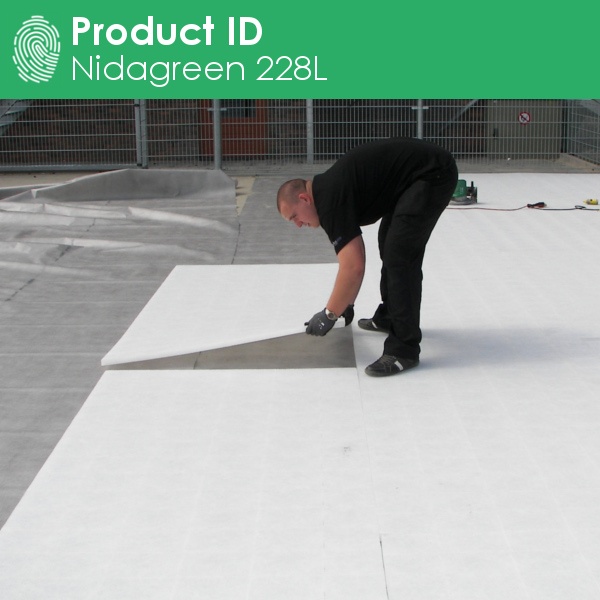

  • Lightweight sheets are easy to handle and quick to install

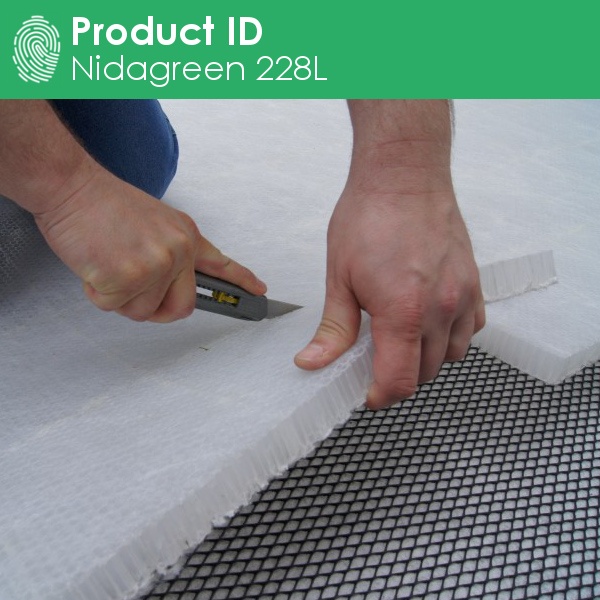

  • Nidagreen can be cut simply to any shape or size

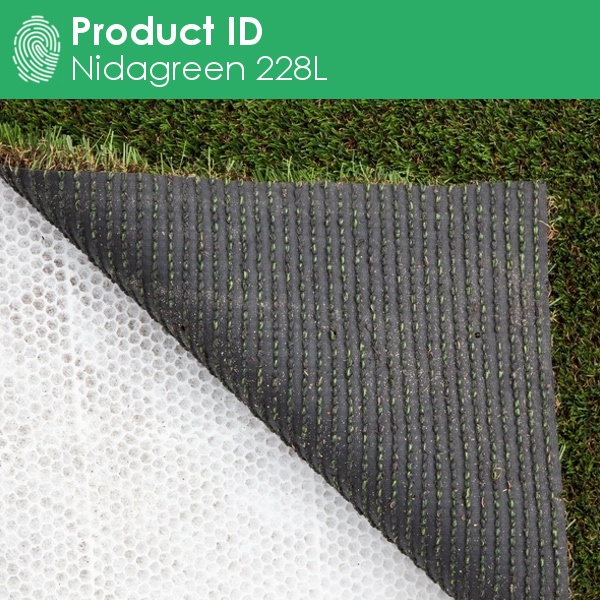

  • Artificial grass to be bonded directly to Nidagreen underlay
  • Use as a sub-base replacement for faster installation
  • Use Nidagreen with shock pads for play areas

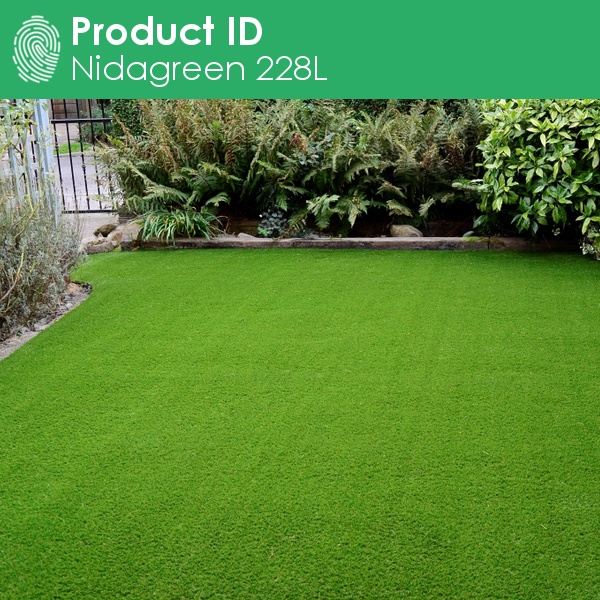

  • Nidagreen ensures a long-term flat artificial turf lawn
  • 70 sheets (168 sqm) per pallet (maximum)

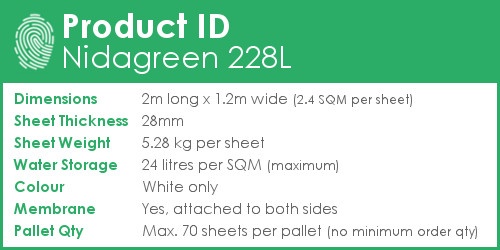

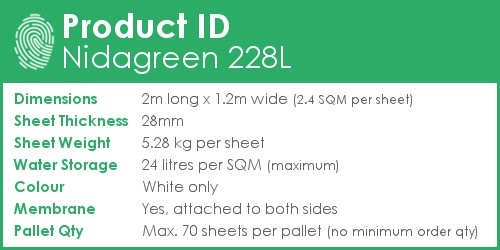

  • NIDAGREEN 228L (Large Size Grid)
  • Sheet dimensions: 2m x 1.2m
  • Sheet coverage: 2.4 sqm per sheet
  • Sheet thickness: 28mm
  • Sheet weight: 2.2 kg per sqm
  • Sheet weight: 5.28 kg per sheet
  • Sheet colour: White
  • Diameter of honeycombs: 8 mm
  • Pressure Resistance: 120 tonnes
  • Void percentage: 95%
  • Water storage: approx. 24 litres per sqm (max)
  • Shock absorption: Approx 10%
  • Product NIDAGREEN 228L
    Function Artificial grass underlay
    Artificial grass sub-base replacement
    Lightweight build-up layer for roof gardens
    Raw Material Copolymer polypropylene
    30% recycled PP
    70% high-quality PP
    Membranes PET 25 grams per sqm
    Twin layer (thermally bonded)
    Strength Under compression / Load-bearing
    In accordance with ISO 844
    Pressure Resistance 120 tonnes
    Durability Excellent resistance to chemical substances
    Highly resistant to aggressive products
    Highly resistant to microorganisms and rodents
    Excellent UV Resistance
    • Code: - NIDA228L
    • Stock: - This product is manufactured to order
    • Brand: - Nidaplast - more
